Electronic Key Security Systems

System Components

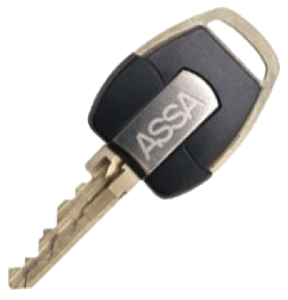

The Intelligent Key is the heart of the INTELLIKEY system. The key carries the access control and personal identity data of the assigned keyholder. Each INTELLIKEY key may be reprogrammed hundreds of times, allowing it to serve many keyholders and many functions. It cannot be read or duplicated except by authorized personnel equipped with site-specific INTELLIKEY equipment.



The Intelligent Lock Controller is the decision-making component of the INTELLIKEY system. The controller’s sophisticated microcomputer is programmed with the access information for the door it controls. The electronic controller communicates with the Intelligent Key to read the key’s programmed access information. If the key is granted access, the controller board’s output circuitry activates the appropriate locking mechanism to allow the keyholder entry. The electronic controller has a built-in clock and calendar, allowing it to control access by time as well as location. This provides features such as time zones, holidays, and expiration dates. The controller automatically adjusts its clock for leap years and for daylight savings time. The controller’s memory also retains an audit trail of the keys that have been used in it. There are controller housings available to fit any mounting arrangement.



The Electronic Cylinder provides the link between the INTELLIKEY controller and key. INTELLIKEY controllers and keys communicate through an invisible, encrypted infrared link provided by the cylinder. INTELLIKEY cylinders are available as replacements for most standard cylinder types, including mortise, rim, and European profile. The electronic cylinder may be configured for either rotating or fixed operation. The Rotating Cylinder is used in conjunction with new or existing mechanical locking devices where rotation of the cylinder retracts or throws a latchbolt. These locking devices include traditional mortise locks, panic devices, deadbolts and key switches. The Fixed Cylinder works as a key reading device only and is used in conjunction with devices such as parking gates, elevators, turnstiles, electric locks, electric strikes, and magnetic locks.

The Key Processing Unit interfaces with a personal computer and transfers data to and from the electronic key. The KPU is used for programming and updating user keys, and for interrogating keys to read authorization or audit trail information. The KPU connects directly to a PC for local key programming, or through a modem for programming or interrogating keys at a remote site.



The Lock Programming Unit interfaces with a personal computer and transfers data to and from the electronic controller. The LPU is one method for programming and updating INTELLIKEY controllers. A Lock Programming Unit may be used in conjunction with a laptop computer to form a portable controller update or interrogation unit.



The INTELLIKEY programming software, Quantum Plus, maintains a database of the features selected for each key and controller in your system. This Microsoft Windows based software system simplifies the task of programming controllers, issuing and tracking keys, and maintaining access control within your site. Quantum Plus is available in both a standard version for institutions that maintain their own keying systems, and a multi-site version for INTELLIKEY suppliers who support several smaller sites.
